Used 2021 Imperial Outdoors XploreRV XR22

Toy Hauler Travel Trailer

Stock # 13663A

Bend, OR

Favorite

Share This RV
Share
Tweet
Pin it
Send to a Friend
Copy Link
Print

1 of 6

Check Availablity

Estimate Payments
Apply for Financing
Send To Friend
Print Page
Factory Brochure

23ft long
5,200 lbs

Sleeps 4
Front Bath

See All Specs

Floorplan
Specifications
Description
Features
Factory Brochure

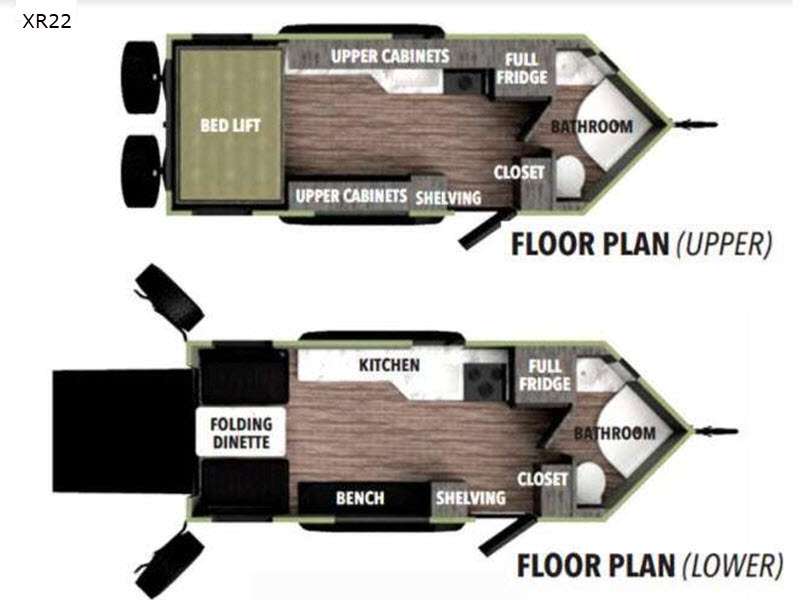

XR22 Floorplan

Factory Brochure

Specifications

Sleeps	4	Length	23 ft 4 in
Ext Width	7 ft 9 in	Ext Height	10 ft
Int Height	6 ft 4 in	GVWR	8820 lbs
Dry Weight	5200 lbs	Cargo Capacity	3620 lbs
Fresh Water Capacity	30 gals	Grey Water Capacity	30 gals
Tire Size	R15	Furnace BTU	18000 btu
Number Of Bunks	1	Available Beds	Full
Cooktop Burners	3	Number of Awnings	1
Axle Weight	5000 lbs	LP Tank Capacity	20 lbs
AC BTU	13500 btu	TV Info	LCD TV
Awning Info	Full Length	Axle Count	1
Number of LP Tanks	2	Shower Type	Radius
VIN	1N9BT2229MS392027

Description

Imperial Outdoors XploreRV XR22 toy hauler highlights:

USB Charging Ports
LCD TV
Bench
Electric Bed Lift
Outside Shower

Load up your favorite off-road toys into this toy hauler and head out to a great weekend getaway! You will have everything you need while out in the woods from the front full bathroom with a shower and dry flush toilet which you won't have to worry about a black water tank to deal with in the back-country. A rear fold-away dinette is the perfect place to enjoy the meals you prepared with the cooktop, full size refrigerator, and sink. The rear full size electric bed lift offers a comfortable place to rest, and the LCD TV and Bluetooth speakers will come in handy when mother nature rains on your parade. A few other conveniences you will appreciate are the off-road rock lighting, a full length awning, floor mounted tie downs, and an exterior 120V power outlet!

Imperial Outdoors has encompassed the cold weather versatility and cabin-style comforts of a fish house with the rugged capability of a true off-road camper in this XploreRV toy hauler! The chassis has been beefed up with an off-road reinforced, coated steel, and the hydraulic ride adjustment has a 12" ground clearance road height and a 20" off-road ground clearance height. In addition to the standard features and Xtreme package already provided, there are five other optional packages that can be added. The Xtreme package includes a ramp door screen, an outdoor shower, on-demand hot water, a lock and roll off-road hitch, and an on-board air compressor, plus more!

Features

Standard Features (2021)

***PLEASE NOTE: Features and Options separated by type below:

---------------------------------------------------

TRAVEL TRAILERS

Standard Features (Model Specific)

Off-road reinforced, coated steel frame
Obstruction Free Under Carriage
(all components above bottom of frame rail)
2in Receiver Hitch for accessories
D-Ring recovery points
CRANE NOBLE® Sheet Glass Seamless Exterior Sidewalls
Innovative aluminum stud exterior wall construction
1pc, fully insulated composite floor and fully walkable composite roof
Twin 20lb LP Fuel Tanks
Cold Weather LP Furnace
Low-profile Roof-Mounted A/C
LCD TV
Bluetooth Speaker
Full Kitchen w/Range, cooktop, full size refrigerator and kitchen sink
Full Bathroom w/shower and dry flush toilet (no black water tank to deal with in the back-country)
Convertible Dinette
Queen Size Bed (RV Queen) w/bedding
LED interior & exterior lighting
Exterior LED Perimeter Lighting
Off-Road Rock Lighting
Conveniently placed 120V outlets & USB charging ports
Roof-mounted MaxxAir ventilation system
Full Length Awning
Exterior Pass-Through Storage
Exterior 120V Power Outlet
RVIA Certified

Xtreme Package (Standard Upgrades)

Hydraulic Ride Adjustment (12” Ground Clearance Road Height / 20” GC Off-Road Height)
33x10.5 R15 Off Road Tires
Front Rubber Rock Guard
Dual full size spare tires mounted to rear swing-away carriers.
On-board air compressor
Custom Roof rack (w/3 cross-members)
Heavy Duty Ladder
Lock+Roll Off-Road Hitch
Thermal Acrylic Windows
Dual 100ah Lithium Batteries
Heated/Insulated Water Storage Tanks
On-demand hot water
200W Roof Mounted Solar System
MPPT Solar Control & Battery Monitor
Back-up Camera Prep
Outdoor Shower

Package Options

Blizzard Package (B)

INCLUDES XTREME PACKAGE
Twin 30lb LP Fuel Tanks
Roof Rack Utility Basket
Roof Mounted Ski Rack
LP Tank Heater

Wilderness Package (W)

INCLUDES XTREME PACKAGE
Hi-Lift Jack
Rotopax Fuel Container
Rear Spare-Tire Mounted Utility Basket (2 total)
Roof-Top Utility Basket

Wilderness Max Package (M)

INCLUDES XTREME PACKAGE
Hi-Lift Jack
Rotopax Fuel Container
Rear Spare-Tire Mounted Utility Basket (2 total)
Imperial Premium Rooftop Tent

Off Grid Max (+)

QUAD 120ah Lithium Batteries (480ah)
2000W Inverter & Monitor Panel
Upgraded 760W Roof Mounted Solar System

--------------------------------------------------

TOY HAULER TRAVEL TRAILER

Standard

Off-road reinforced, coated steel frame
Obstruction Free Under Carriage (all components above bottom of frame rail)
2in Receiver Hitch for accessories
D-Ring recovery points
CRANE NOBLE® Sheet Glass Seamless Exterior Sidewalls
Innovative aluminum stud exterior wall construction
1pc, fully insulated composite floor and fully walkable composite roof
Twin 20lb LP Fuel Tanks
Cold Weather LP Furnace
Low-profile Roof-Mounted A/C
LCD TV
Bluetooth Speaker
Full Kitchen w/Range, cooktop, full size refrigerator and kitchen sink
Full Bathroom w/shower and dry flush toilet (no black water tank to deal with in the back-country)
Rear Fold-Away Dinette
Full Size Electric Bed Lift
LED interior & exterior lighting
Exterior LED Perimeter Lighting
Off-Road Rock Lighting
Conveniently placed 120V outlets & USB charging ports
Roof-mounted MaxxAir ventilation system
Full Length Awning
1000lb easy-lift ramp door
Floor mounted Tie downs
Exterior 120V Power Outlet
RVIA Certified

Xtreme Package (Standard Upgrades)

Hydraulic Ride Adjustment (12” Ground Clearance Road Height / 20” GC Off-Road Height)
33x10.5 R15 Off Road Tires
Front Rubber Rock Guard
Dual full size spare tires mounted to rear swing-away carriers.
On-board air compressor
Custom Roof rack (w/3 cross-members)
Heavy Duty Ladder
Lock+Roll Off-Road Hitch
Thermal Acrylic Windows
Ramp Door Screen
Heated/Insulated Water Storage Tanks
On-demand hot water
Roof Mounted Solar System
Back-up Camera Prep
Outdoor Shower

Package Options

Blizzard Package (B)

INCLUDES XTREME PACKAGE
Twin 30lb LP Fuel Tanks
Ramp Door Thermal Blanket
Roof Rack Utility Basket
Upgraded Cold Weather LP Furnace
Roof Mounted Ski Rack
LP Tank Heater

Wilderness Package (W)

INCLUDES XTREME PACKAGE
Hi-Lift Jack
2 Rotopax Fuel Containers
Rear Spare-Tire Mounted Utility Basket (2 total)
Roof-Top Utility Basket

Wilderness Max Package (M)

INCLUDES XTREME PACKAGE
Hi-Lift Jack
2 Rotopax Fuel Containers
Rear Spare-Tire Mounted Utility Basket (2 total)
Imperial Premium Rooftop Tent

H2O Package (H)

INCLUDES XTREME PACKAGE
2 Kayak Carriers w/ Paddle Holders
Board Pads for Surf or SUP Boards (1-set)
2 Rapid Lock Tie Down Straps

MTB/MX Pacakge (Z)

INCLUDES XTREME PACKAGE
2 Wheel Chocks For Mtn. Bike or MX/Enduro
Wall Mounted Bike Repair Stand

See us for a complete list of features and available options!

All standard features and specifications are subject to change.

All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.
